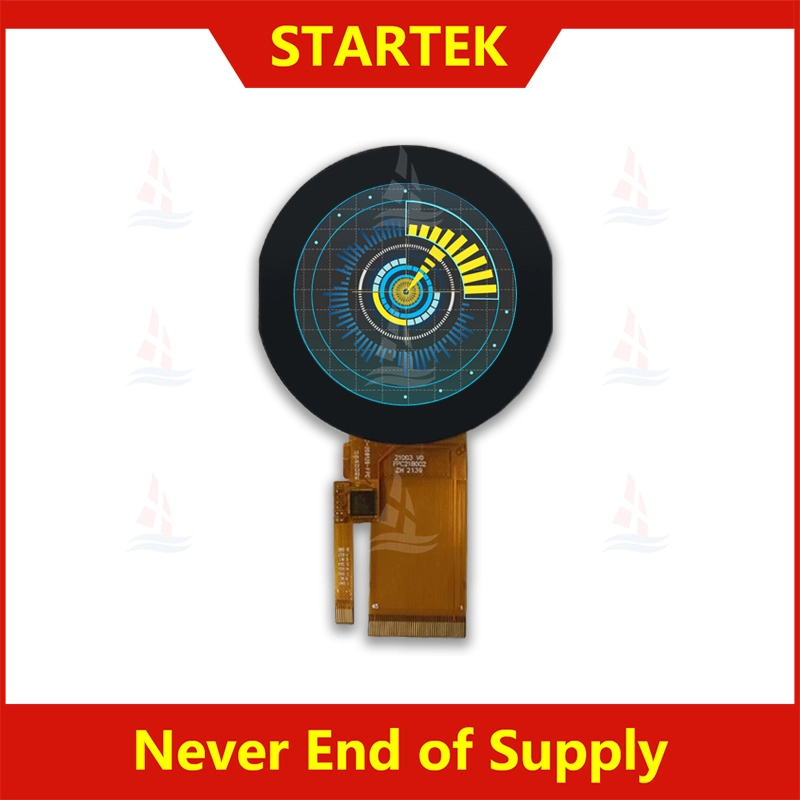

2.1 inch 480x480 ST7701S SPI+16/18/24 RGB interface Industrial TFT LCD with capacitive touch KD021WVFPD003-C001A

The KD021WVFPD003 - C001A is a 2.1 - inch LCM + CTP module. It has a TFT - LCD with 480x480 pixels and 16.7M colors, along with a capacitive touch panel. The TFT uses amorphous silicon and has an SPI + 16/18/24 RGB interface. The module offers good optical (contrast ratio 800 - 1000, etc.), electrical, and mechanical properties. It has a 4 - chip LED backlight and a 12C - based touch panel controller. It's suitable for various applications and has passed reliability tests.

    oops...!

    no product data.

    Go to homepage
    Part No.
    KD021WVFPD003-C001A
    Size
    2.1 inch
    Resolution
    480x480
    Display Type
    IPS
    Touch Panel
    Capacitive Touch
    Color
    16.7M
    Pixel Pitch
    0.111(H)*0.111(V)
    Viewing Angle
    Free V.A
    Driver IC
    ST7701S
    Brightness
    500cd/m²
    Contrast Ratio
    1000∶1
    Pin No.
    45
    Active Area
    53.28*53.28mm
    Overall Size
    70.61*72.61*3.39mm
    Module Interface
    SPI+16/18/24 RGB
    Operating Temperature
    -20℃~+70℃
    Storage Temperature
    -30℃~+80℃
    Life Time
    50000h
    Compliant
    RoHS
    Certification of Registration
    ISO9001, ISO13485, ISO14001, IATF16949




    英文口号 3句 (2)




    产品介绍 新

    Exquisite 2.1 - inch LCM + CTP Module: KD021WVFPD003 - C001A - A Visual and Tactile Marvel

    The KD021WVFPD003 - C001A is an exquisite module that combines a 2.1 - inch TFT - LCD with a capacitive touch panel, offering a visual and tactile marvel. With 480x480 pixels and the ability to display 16.7M colors, it presents sharp and vivid images. The amorphous silicon TFT switching device precisely controls the liquid crystal molecules, enabling accurate image formation. Its transmissive / normally BLACK display mode enhances the contrast and depth, making every detail stand out. The touch panel, with its G + F + F structure and ST1633i controller, provides smooth and responsive touch functionality, allowing for intuitive interaction. This module is perfect for applications where a high - quality display and touch interaction are required, such as tablets, smartwatches, or handheld gaming devices.

    英文官网 (37)
    英文型号 点亮 (28)

    Versatile SPI + 16/18/24 RGB Interface of KD021WVFPD003 - C001A: Unlocking Endless Possibilities

    The KD021WVFPD003 - C001A features a versatile SPI + 16/18/24 RGB interface that unlocks endless possibilities. This interface enables seamless connectivity with a wide variety of devices and systems, facilitating easy integration into different applications. The specific pin assignments and protocols for data transfer, control signals, and other functions ensure smooth and reliable operation. Whether it's a consumer electronics product, an industrial control panel, or a medical device, this module can adapt and function effectively, thanks to its well - designed interface.

    Reliable and Durable KD021WVFPD003 - C001A: The Trusted Choice for Harsh Environments

    The KD021WVFPD003 - C001A is a reliable and durable module, making it the trusted choice for harsh environments. It has undergone rigorous reliability tests, including high and low temperature operations, thermal shock, and vibration tests. These tests ensure that the module can withstand the harshest conditions and maintain its performance over time. The module's robust construction and quality components contribute to its long - term reliability. The TFT - LCD panel is protected by a durable housing, and the touch panel is designed to resist wear and tear. This module can be used in outdoor equipment, automotive dashboards, or industrial machinery, where reliability and durability are crucial.

    英文型号 正面 (29)
    英文型号 背面 (28)

    2.1 - inch LCM + CTP Module with Stunning Optical and Touch Features: KD021WVFPD003 - C001A

    The KD021WVFPD003 - C001A is a 2.1 - inch module with stunning optical and touch features. It offers a contrast ratio of 800 (min) to 1000 (typ), ensuring deep blacks and bright whites for a more immersive viewing experience. The response time is relatively fast, minimizing motion blur and providing smooth transitions between images. The color gamut and color filter chromaticity are well - calibrated, producing vivid and true - to - life colors. The wide viewing angle allows for clear visibility from different directions, making it suitable for various viewing positions. The touch panel provides accurate and sensitive touch response, enabling precise interaction. These features make it an excellent choice for applications where visual quality and touch functionality are important, such as digital cameras, portable media players, or handheld navigation devices.

    KD021WVFPD003 - C001A: Your Ideal Display and Touch Solution for Various Devices

    The KD021WVFPD003 - C001A is your ideal display and touch solution for various devices. Its small size, with a module dimension of 70.61mm (horizontal) x 72.61mm (vertical) x 3.39mm (depth) and a weight of 21g, makes it suitable for integration into small and medium - sized electronics. Despite its size, it offers excellent display quality and touch functionality, meeting the requirements of various portable and handheld devices. The module's reliable operation and versatile interface ensure a great user experience, whether it's a smartphone, a tablet, or a portable game console.

    结构图+LOGO (30)
    交期 新



    标准品交期
    定制品交期




    证书认证 新




    证书 新




    成交客户 新
    客户 新
    工厂 新




    惠州厂房1


    Construction of a New Production Base in Huizhou City


    The New production base of STARTEK in Huizhou is located in Building 21, Erix Science and Technology Industrial Park, Zhongkai High-tech Zone, Huizhou City. The project has 14 floors in total, with 1200 square meters per floor and 16800 square meters in total.


    The completion of the new base will not only further expand the production scale, further dominate the product advantages, achieve scale efficiency, but also greatly improve the LCD display industrial level, improve customer satisfaction.


    厂房 (2)

    Huizhou Factory of Startek

    新厂房图片2
    新厂房图片1
    惠州厂房车间

    Company Profile

    公司面貌 (2)

    Equipment

    设备




    英文口号 3句 (2)




    Q&A 新


    ▲ 1. How to understand Stock for Sale.


    Answer:According to the company regulation, each standard product must be kept the stock of 1000-5000pcs.


    When the stock is less than 1000 pcs, we will put it into production at once instead of waiting for the orders. When the stock are more than 5000 pcs, the production must be stopped.


    Appropriate stock is a very good support for the customer’s sampling and trial production demand.


    The appropriate stock is also a guarantee of the quality. The production of the stock is always having more time than the production of the order. We have enough time to do more checking and to consider all the possible factors affecting the quality, what’s more, in case that our products has been found a problem at the customer’s production, we have the stocked ones to do the replacement.


    The appropriate stock is also a good way to reduce the cost. In busy seasons, we can produce the orders, while in free seasons, we can produce the stock. By this way, the labor source is maximumly used. At the same time, in free season, the materials can be bought at lower price.


     2. How does Startek do for Never End of Supply?


    Answer:EOL(End of Life) is largely because of end of life of  the raw materials


    When the EOL of the raw materials such as drivers and LCD panels happens, we can place a very large order with the supplier which may cover the consumption of one or two year. This large order is enough for the supplier to restart the production.


    On the other hand, we can develop the replacement product which is mechanically and functionally the same as the previous one. For the customer, only software will be changed a little while the hardware will remain the same.


    For instance, about 4 years, Ilitek declared EOL for ILI9325C, but we bought 300k in one lot although our demand is 50k only. We kept 250k in stock for future use. So far we make Ilitek restart the production exclusively for us for 5 times. By now the products with the driver of ILI9325C is still normally supplied in our company.


    Another instance is related to 3.0 inch 240*400 panel. About two years ago, the supplier declared EOL. We get another supplier copied this product with a low MOQ purchase agreement. Now KD030C-1, KD030C-2 and KD030C-3 (3 inch) are well available in our factory.


    Startek has built comprehensive relationships with the supplier such as LG, Hannstar and BOE and we can get the EOL products through our special channel to guarantee the continuous supply.


    In LCD industry, due to the quick update of the technology, never end of supply is hard, but so far, Startek has never disappointed any customer.


    Once the customer chooses us, we will offer the unchanged service till the end. Long-time relationship and mutual trust are our target and we hate well beginning but bad ending.


    ▲ 3. How to understand No MOQ?


    Answer:The quantity of the order is decided by the market. As a supplier, we have no right to request the order must be more than any quantity. We have no MOQ request, a single piece is also a good order for us.


    In another way, our products are always having stock, we don’t need to start the production for a small quantity, and we are capable enough of accepting the small orders.


    However, if the quantity is small, the price will be higher.


    ▲ 4. How to understand in Full Range.

    Answer:In full range means that our products are in great variety. We have what other manufacturers have, and we have what they don’t have. The customer is easy to find what they want in our product group. Like Walmart instead of Seven Eleven, all kinds of the products are placed before us and it is easy to attract the customers to come, so we like going shopping in Walmart, but we don’t like to go to Seven Eleven.


     5. Will Startek go bankrupted?


    Answer:Startek will never go bankrupted.


    Startek has thousands of customers from different industries. The growth of Startek does not rely on any special customer.


    Many customers are from Medical equipment and mechanical industry. These industries have long lifespan, their products are of long longevity. Some of these buyers signed more-than-10-year supplying contract with us.


    We have a good cash reserve which can cover 10 years’expense in the condition of 0 order.


    We have a strong mind of strategy, we have 5 years’ plan, 10 years’plan and 50 years’ plan.


     6. How does Startek guarantee the quality?


    Answer: Startek has passed ISO9001:2008 certification. ISO principle is carried out in daily activities. The quality is strictly controlled in designing, material incoming, production process, equipment, management and checking and the rejects are not allowed to flow at any circumstances.


    Startek has thousands of customers, in many cases, one product is being used by many customers. If one product is used by many factories, the quality is believable because most of the problems were solved already.


    The Startek is following the quality standards from automotive industry. Special attention is paid to the capacity of anti-high-temperature, anti-shock and aftersales reliability. We don’t fear the rejects on the production line, we badly fear the rejects at the final consumer’s hand. Solving such kind of rejects are most costly. Startek is always pursuing 0 aftersales reject, so we adopted the strictest quality standards.


     7. Why are Startek’s products higher in price?


    Answer: The LCD quality has three standards: 1.consuming standards.2.Industrial standards 3.Automotive standards. Automotive standards are the highest grade which require the strong anti-shock capacity, anti-high-temperature capacity, high reliability and very low rate of reject. To follow automotive standards, we have to select the best raw materials, and bring in the most expensive equipment and very tough management, so our cost is higher.


    In fact, our higher price is only manifested in samples. If the quantity is higher or the cooperation time is long, as long as the customer files the price request, the favorable price can be available after negotiation.


     8. How long can we expect the samples?


    Answer: Immediately in most of the cases.
