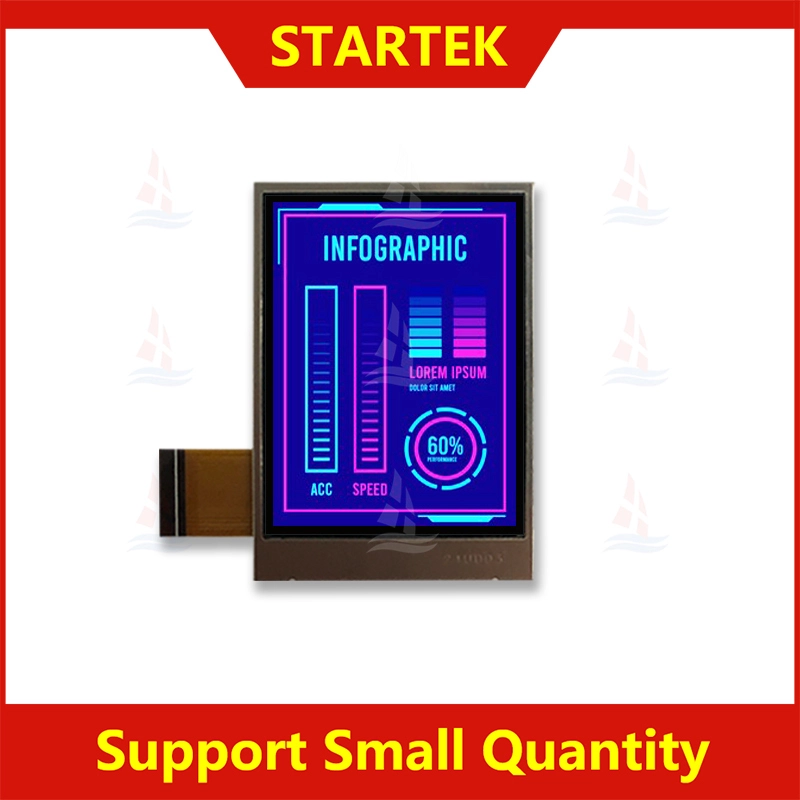

2.4 inch 240x320 resolution ST7789V MCU/RGB/SPI interface sunlight readable IPS Transflective LCD module KD024QVRMA041A

KD024QVRMA041A offers clear and vibrant display quality for various applications. Its transflective technology ensures excellent visibility in both dark and bright conditions, making it suitable for outdoor and industrial use. With its versatile interface options, this LCD module is a practical and reliable choice for a wide range of electronic devices.

KD  ['kei'di:]  详细X
基本翻译
abbr. (窑内)烘干的(Kiln-dried);拆卸的(Knocked Down)
网络释义
KD: 随机指标
Kd-Trees: 线段树
KD CJ: 差动继电器

    oops...!

    no product data.

    Go to homepage
    Part No.
    KD024QVRMA041A
    Size
    2.4 inch
    Resolution
    240x320
    Display Type
    TFT
    Touch Panel
    Without Touch Panel
    Color
    65K/262K
    Pixel Pitch
    0.153(H)*0.153(V)
    Viewing Angle
    Free V.A
    Driver IC
    ST7789V2
    Brightness
    300cd/m²
    Contrast Ratio
    300∶1
    Pin No.
    45
    Active Area
    36.72*48.96mm
    Overall Size
    42.92*60.26*2.45mm
    Module Interface
    MCU/SPI/RGB
    Operating Temperature
    -20℃~+70℃
    Storage Temperature
    -30℃~+80℃
    Backlight Type and Color
    LED backlight / white
    Life Time
    50000h
    Compliant
    RoHS
    Certification of Registration
    ISO9001, ISO13485, ISO14001, IATF16949




    英文口号 3句 (2)




    产品介绍 新

    High-Quality LCM Module: Your Ideal Choice

    The KD024QVRMA041A LCM Module is a high-quality display solution offered by SHENZHEN STARTEK ELECTRONIC TECHNOLOGY CO., LTD. It features a transflective type TFT - LCD panel with a resolution of 240X320 pixels, capable of displaying up to 65K/262K colors. The module is designed with precision engineering, ensuring excellent optical and electrical characteristics. With its reliable performance and superior quality, it is the ideal choice for various applications.

    英文官网 (2)
    英文型号 点亮 (2)

    Advanced Features

    This LCM module comes with a range of advanced features. It has a SUPER WIDE viewing angle, allowing for clear visibility from different directions. The LED backlight system provides a uniform and bright illumination, with a luminance of 250 - 300 cd/m2. The module also supports multiple interfaces, including 8080 Series MCU Parallel Interface, Serial Interface, and RGB Interface, making it compatible with a wide range of devices. Additionally, it has a low power consumption, ensuring efficient operation.

    Explore The LCM Module: Transflective Display

    The KD024QVRMA041A LCM Module features a transflective display, which combines the advantages of both transmissive and reflective displays. In transmissive mode, it offers high brightness and excellent color reproduction, while in reflective mode (without driving the back light), it can still provide visible images, making it suitable for various lighting conditions. This unique display technology enhances the usability and versatility of the module.

    英文型号 正面 (2)
    英文型号 背面 (2)

    Reliable And Versatile

    The KD024QVRMA041A LCM Module is built to last. It has undergone rigorous reliability tests, including high temperature operating, low temperature operating, high temperature storage, low temperature storage, high temperature & high humidity operating, thermal shock, ESD test, vibration, and box drop test. These tests ensure that the module can withstand harsh environments and operate reliably. Moreover, its compact size and lightweight design make it easy to integrate into different devices, making it a versatile choice for various applications.

    Precision Engineering

    The KD024QVRMA041A LCM Module showcases precision engineering in every aspect. From the input terminal pin assignment to the LCD optical and electrical characteristics, every detail is carefully designed and optimized. The module's block diagram and outline dimension are precisely defined to ensure seamless integration into your system. With its high - quality components and advanced technology, it delivers accurate and stable performance, meeting the demands of even the most critical applications.
