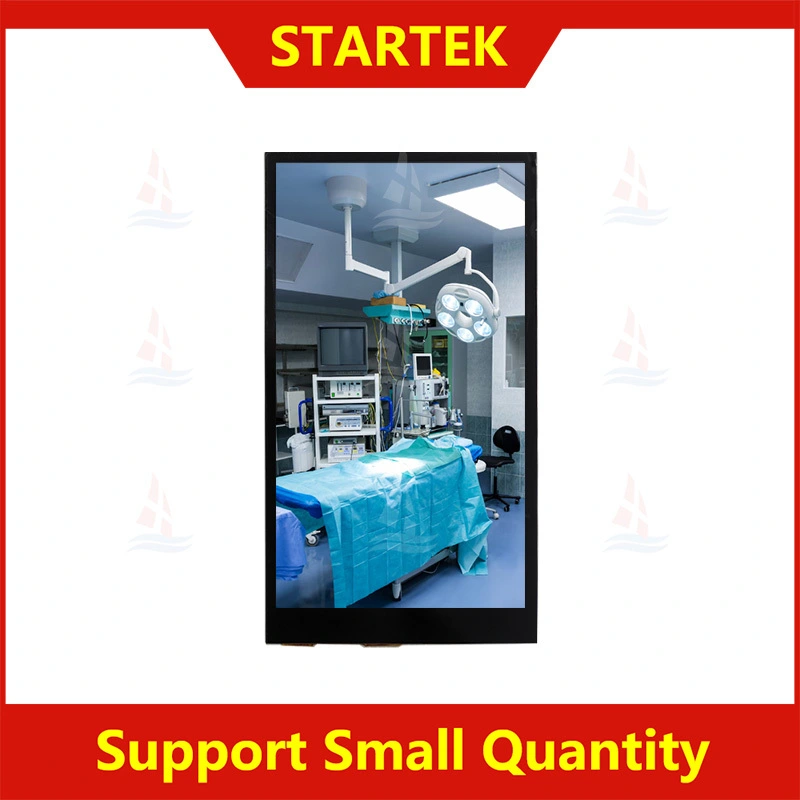

4.5 inch 480x854 ILI9806E HDMI interface Medical TFT LCD with capacitive touch panel KD045FWTPA001-02-C001B-SP001A-HDMI

The KD045FWTPA001-02-C001B-SP001A-HDMI is an LCM+CTP+HDMI module. It has a 4.5” TFT-LCD with 480x854 pixels and 65K/262K/16.7M colors. Features include HDMI(Type A) and capacitive touch panel interfaces, specific optical and electrical characteristics, and it operates in a certain temperature range. It also has defined quality inspection and reliability test standards.

    oops...!

    no product data.

    Go to homepage
    Part No.
    KD045FWTPA001-02-C001B-SP001A-HDMI
    Size
    4.5 inch
    Resolution
    480x854
    Display Type
    TFT
    Touch Panel
    Capacitive Touch
    Color
    65K/262K/16.7M
    Pixel Pitch
    0.1155(H)*0.1155(V)
    Viewing Angle
    V.A 12H
    Driver IC
    ILI9806E
    Brightness
    350cd/m²
    Contrast Ratio
    800∶1
    Active Area
    55.44*98.64mm
    Overall Size
    61.54*110.09*19.00mm
    Module Interface
    HDMI
    CTP Controller IC
    GT911
    CTP Interface
    Micro USB
    Operating Temperature
    -20℃~+70℃
    Storage Temperature
    -30℃~+80℃
    Backlight Type and Color
    LED backlight / white
    Life Time
    50000h
    Compliant
    RoHS
    Certification of Registration
    ISO9001, ISO13485, ISO14001, IATF16949




    英文口号 3句 (2)




    产品介绍 新

    High-Resolution Display

    The module features a 4.5” TFT-LCD with 480x854 pixels and 65K/262K/16.7M colors, providing a high-resolution display. The RGB vertical stripe pixel arrangement and pixel pitch contribute to sharp images. It supports various operating systems and has a transmissive/Normally White display mode for good visibility.

    英文主图 (8)
    英文点亮 (12)

    Versatile Interface Module

    It is a versatile interface module with HDMI (Type A) for video input and a micro USB for the capacitive touch panel. The module can be easily integrated into different systems. It also has a 4-lane MIPI interface and operates within a temperature range of -20 to +70°C for storage and -30 to +80°C for operation.

    Optimal Optical Performance

    The optical performance is optimal. It has a contrast ratio of 800, a response time within 4 - 8 msec, and a color gamut of 52%. The color filter chromaticity values ensure accurate colors. The wide viewing angle of 60 - 70° in both horizontal and vertical directions offers good visibility from different perspectives.

    英文正面 (12)
    英文背面 (14)

    Robust Electrical Features

    The module exhibits robust electrical features. It has defined absolute maximum ratings for power supply voltage and operating/storage temperatures. The DC electrical characteristics specify the power supply voltage range and current consumption. The LED backlight has specific forward current and lifetime requirements for reliable performance.

    Reliable and Durable Design

    The KD045FWTPA001-02-C001B-SP001A-HDMI is designed to be reliable and durable. It has undergone reliability tests including high and low temperature operations, high temperature and high humidity, thermal shock, and vibration tests. The results show that it can withstand these conditions without significant defects, ensuring long-term service in various applications.
