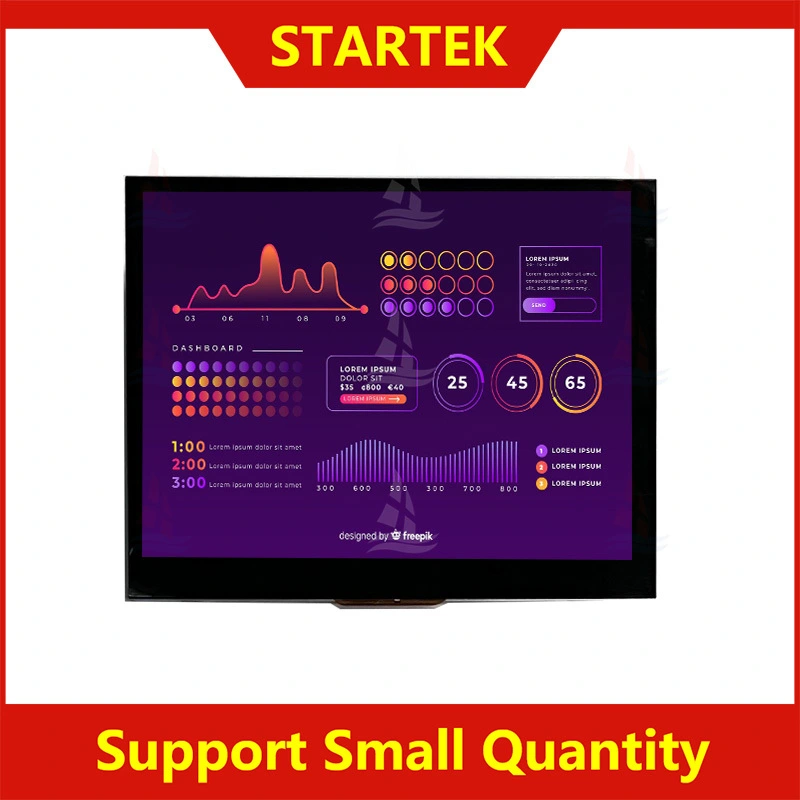

5.7 inch 640x480 serial screen CAN signal interface wide temperature LCD display module UART board KD057VGFPA013-CAN
This is a 5.7" TFT LCD module with amorphous silicon TFT, 640x480 pixels, and 16.7M colors. It has a CAN BUS interface (supporting CAN2.0A and CAN2.0B), 128M-byte Flash Memory. It includes optical/electrical specs, quality control, and reliability test results. There are also handling precautions for its use and storage.
Uart Schematic Diagram
5.7-inch TFT LCD with High-Quality Display
The 5.7-inch TFT LCD of this module offers a high-quality display. With a resolution of 640x480 pixels and the ability to display 16.7M colors, it presents sharp and vivid visuals. The amorphous silicon TFT technology, along with a pixel pitch of 0.18(H) x 0.18(V) mm and RGB vertical stripe arrangement, ensures excellent image reproduction. The contrast ratio of 1000 (min) to 1200 (typ) and wide viewing angles of 80° (both horizontal and vertical) provide clear visibility from different perspectives. Whether used for displaying detailed graphics, videos, or text, this display delivers an immersive visual experience. It is suitable for various applications such as industrial control panels, handheld devices, and small monitors where clear and accurate visual representation is crucial.
CAN Bus Interface for Efficient Communication
The CAN Bus interface (supporting CAN2.0A and CAN2.0B) is a significant advantage for efficient communication. It enables seamless data transfer between the module and other devices in industrial and automotive applications. The interface allows for reliable and fast transmission of information, making it suitable for real-time control and monitoring systems. With a Baudrate of 115200 bps, it can handle a large amount of data quickly. This interface simplifies the integration of the module into existing CAN Bus networks, facilitating communication between different components. It ensures stable and accurate data exchange, enhancing the overall performance and functionality of the connected system. For example, in a vehicle dashboard display, it can receive and display data from various sensors and control units with ease.
Robust and Adaptable Design
The module features a robust and adaptable design. It can operate within a wide temperature range of -30°C to +80°C, making it suitable for use in diverse environments. The mechanical structure is designed to withstand physical shocks and vibrations, ensuring durability. The flash memory of 128M-byte provides ample storage space for various applications. Additionally, the module's design allows for easy integration into different systems, whether it's for industrial machinery, automotive electronics, or other applications. The tape bonding technology used in its construction further enhances its reliability. This design makes the module a reliable choice for long-term use in challenging conditions.
User-Friendly Development Tools
The user-friendly development tools provided, such as UI_Editor II, simplify the customization process. It allows users to pack font, image, and configuration parameters easily and generate a BIN file. The toolbar offers a variety of widgets for touch and display functions, along with layout and alignment options. The page editing window enables direct customization of the interface, and the status window shows the operation process. The widget list and parameter setting window assist in fine-tuning the design. This intuitive development environment is accessible to developers of all levels, enabling them to create personalized applications for the module quickly and efficiently. It saves time and effort in the development cycle, making it an invaluable tool for customization.
Reliable Quality Assurance
Reliable quality assurance is a key aspect of this product. The visual and functional inspection standard is based on strict criteria, following GB/T 2828 - 2003 with normal inspection, Class II. The sampling plan and defect classification ensure that only high-quality modules are delivered. Rigorous reliability tests, including high and low temperature operations, thermal shock, and ESD tests, have been conducted. The test results demonstrate the module's ability to withstand harsh conditions without significant performance degradation. This gives users confidence in the product's quality and reliability, knowing that it has been thoroughly tested and meets industry standards. It is suitable for applications where consistent and reliable performance is essential.
