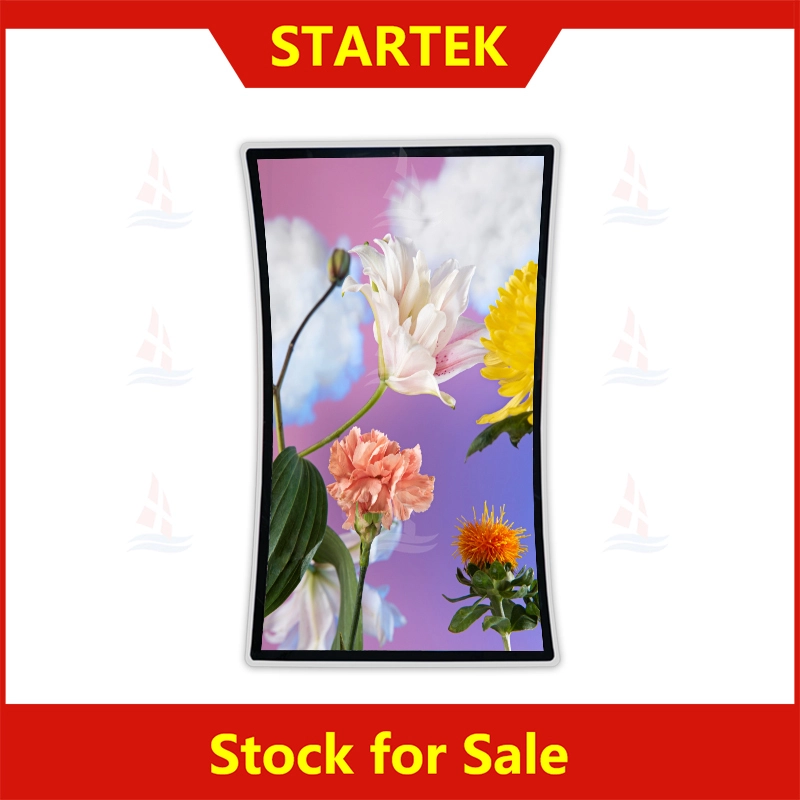

55 inch C-Curved R1800 3840x2160 monitor display full color 1.07B HDMI VGA interface KD550UHFVA006-C003A-C1800-Monitor

This 55-inch C-curved (R1800) capacitive touch monitor from STARTEK features 4K (3840x2160) resolution, 10-bit 1.07B colors, 178° viewing angles and LED backlight (50,000hrs lifespan). It supports 10-point touch, HDMI/VGA inputs, multi-OS, VESA/table mounting, with 155W typical power consumption and <1W standby power.

5.0
Shipping:
Support Sea/Land/Air freight (DHL, UPS, FedEx ...)
Place of Origin:
China
Payments:
T/T, Paypal, L/C, ‌Ali Online Payment
Customization:
Min. Order: 500 pcs
Brand Name:
STARTEK
design customization

    oops...!

    no product data.

    Go to homepage
    Part No.
    KD550UHFVA006-C003A-C1800-Monitor
    Size
    55 inch
    Resolution
    3840x2160
    Display Type
    TFT
    Touch Panel
    Capacitive Touch
    Color
    1.07B
    Pixel Pitch
    --
    Viewing Angle
    Free V.A
    Driver IC
    RTD2775
    Brightness
    250-300cd/m²
    Contrast Ratio
    1500∶1
    Active Area
    681.40*1174.66mm
    Overall Size
    756.80*1270.02*167.40mm
    Module Interface
    HDMI/VGA
    Operating Temperature
    0℃~+40℃
    Storage Temperature
    -20℃~+60℃
    Life Time
    50000h
    Compliant
    RoHS
    Certification of Registration
    ISO9001, ISO13485, ISO14001, IATF16949



    英文口号 3句 (2)



    产品介绍 新

    55-inch C-Curved 4K Capacitive Touch Monitor

    This 55-inch C-curved monitor from STARTEK features a 3840x2160 4K resolution and 10-point capacitive touch (G+F+F structure). It supports Windows, Android, and Linux systems, with 5 physical keys and a remote for easy control. Its 10-bit color depth delivers 1.07 billion colors, ensuring vivid, true-to-life visuals for diverse usage scenarios.

    英文官网首图 (44)
    英文正面1 (43)

    R1800 Curved 4K Display

    Boasting an R1800 curvature, this monitor offers immersive viewing with 178° horizontal and vertical viewing angles. It has a 1500:1 contrast ratio and 250-300 cd/m² brightness, plus an anti-glare 25% display covering to reduce reflections. The LED backlight has a 50,000-hour lifespan, ensuring long-term stable performance.

    High-Color 1.07B Colors 55-inch Curved Monitor

    Equipped with HDMI 1.4 and VGA input ports, this monitor supports a recommended 4K@60Hz resolution via HDMI. It has optional 8W×2 speakers and a 3.5mm earphone jack for flexible audio output. The touch function connects via USB-B, with VBUS providing +5Vdc/1A power for seamless touch response.

    英文正面2 (43)
    英文背面 (102)

    55-inch Curved Monitor with VESA & Table Mounting

    This monitor offers dual mounting options: VESA and table base, fitting different installation needs. Its operating power consumption is only 155W (typical), with standby power below 1W for energy efficiency. It works in 0-40℃ temperatures and meets RoHS standards, suitable for commercial and industrial environments.

    Anti-Glare 4K Curved Touch Screen

    Undergoing strict reliability tests (240h high/low temp operation/storage), this monitor resists physical shocks and static damage. The TFT-LCD panel uses amorphous silicon TFT for stable switching. Its enclosure is a black curved capacitive touch display, with an acrylic frame featuring LED running lights for enhanced visual appeal.

    DS图纸 (39)
    细节图1
    细节图2
    交期 新


    标准品交期
    定制品交期



    证书认证 新



    证书 新



    成交客户 新
    客户 新
    工厂 新



    惠州厂房1


    Construction of a New Production Base in Huizhou City


    The New production base of STARTEK in Huizhou is located in Building 21, Erix Science and Technology Industrial Park, Zhongkai High-tech Zone, Huizhou City. The project has 14 floors in total, with 1200 square meters per floor and 16800 square meters in total.


    The completion of the new base will not only further expand the production scale, further dominate the product advantages, achieve scale efficiency, but also greatly improve the LCD display industrial level, improve customer satisfaction.


    厂房

    Huizhou Factory of Startek

    新厂房图片2
    新厂房图片1
    惠州厂房车间

    Company Profile

    公司面貌

    Equipment

    设备



    英文口号 3句 (2)



    Q&A 新


    ▲ 1. How to understand Stock for Sale.


    Answer:According to the company regulation, each standard product must be kept the stock of 1000-5000pcs.


    When the stock is less than 1000 pcs, we will put it into production at once instead of waiting for the orders. When the stock are more than 5000 pcs, the production must be stopped.


    Appropriate stock is a very good support for the customer’s sampling and trial production demand.


    The appropriate stock is also a guarantee of the quality. The production of the stock is always having more time than the production of the order. We have enough time to do more checking and to consider all the possible factors affecting the quality, what’s more, in case that our products has been found a problem at the customer’s production, we have the stocked ones to do the replacement.


    The appropriate stock is also a good way to reduce the cost. In busy seasons, we can produce the orders, while in free seasons, we can produce the stock. By this way, the labor source is maximumly used. At the same time, in free season, the materials can be bought at lower price.


     2. How does Startek do for Never End of Supply?


    Answer:EOL(End of Life) is largely because of end of life of  the raw materials


    When the EOL of the raw materials such as drivers and LCD panels happens, we can place a very large order with the supplier which may cover the consumption of one or two year. This large order is enough for the supplier to restart the production.


    On the other hand, we can develop the replacement product which is mechanically and functionally the same as the previous one. For the customer, only software will be changed a little while the hardware will remain the same.


    For instance, about 4 years, Ilitek declared EOL for ILI9325C, but we bought 300k in one lot although our demand is 50k only. We kept 250k in stock for future use. So far we make Ilitek restart the production exclusively for us for 5 times. By now the products with the driver of ILI9325C is still normally supplied in our company.


    Another instance is related to 3.0 inch 240*400 panel. About two years ago, the supplier declared EOL. We get another supplier copied this product with a low MOQ purchase agreement. Now KD030C-1, KD030C-2 and KD030C-3 (3 inch) are well available in our factory.


    Startek has built comprehensive relationships with the supplier such as LG, Hannstar and BOE and we can get the EOL products through our special channel to guarantee the continuous supply.


    In LCD industry, due to the quick update of the technology, never end of supply is hard, but so far, Startek has never disappointed any customer.


    Once the customer chooses us, we will offer the unchanged service till the end. Long-time relationship and mutual trust are our target and we hate well beginning but bad ending.


    ▲ 3. How to understand No MOQ?


    Answer:The quantity of the order is decided by the market. As a supplier, we have no right to request the order must be more than any quantity. We have no MOQ request, a single piece is also a good order for us.


    In another way, our products are always having stock, we don’t need to start the production for a small quantity, and we are capable enough of accepting the small orders.


    However, if the quantity is small, the price will be higher.


    ▲ 4. How to understand in Full Range.

    Answer:In full range means that our products are in great variety. We have what other manufacturers have, and we have what they don’t have. The customer is easy to find what they want in our product group. Like Walmart instead of Seven Eleven, all kinds of the products are placed before us and it is easy to attract the customers to come, so we like going shopping in Walmart, but we don’t like to go to Seven Eleven.


     5. Will Startek go bankrupted?


    Answer:Startek will never go bankrupted.


    Startek has thousands of customers from different industries. The growth of Startek does not rely on any special customer.


    Many customers are from Medical equipment and mechanical industry. These industries have long lifespan, their products are of long longevity. Some of these buyers signed more-than-10-year supplying contract with us.


    We have a good cash reserve which can cover 10 years’expense in the condition of 0 order.


    We have a strong mind of strategy, we have 5 years’ plan, 10 years’plan and 50 years’ plan.


     6. How does Startek guarantee the quality?


    Answer: Startek has passed ISO9001:2008 certification. ISO principle is carried out in daily activities. The quality is strictly controlled in designing, material incoming, production process, equipment, management and checking and the rejects are not allowed to flow at any circumstances.


    Startek has thousands of customers, in many cases, one product is being used by many customers. If one product is used by many factories, the quality is believable because most of the problems were solved already.


    The Startek is following the quality standards from automotive industry. Special attention is paid to the capacity of anti-high-temperature, anti-shock and aftersales reliability. We don’t fear the rejects on the production line, we badly fear the rejects at the final consumer’s hand. Solving such kind of rejects are most costly. Startek is always pursuing 0 aftersales reject, so we adopted the strictest quality standards.


     7. Why are Startek’s products higher in price?


    Answer: The LCD quality has three standards: 1.consuming standards.2.Industrial standards 3.Automotive standards. Automotive standards are the highest grade which require the strong anti-shock capacity, anti-high-temperature capacity, high reliability and very low rate of reject. To follow automotive standards, we have to select the best raw materials, and bring in the most expensive equipment and very tough management, so our cost is higher.


    In fact, our higher price is only manifested in samples. If the quantity is higher or the cooperation time is long, as long as the customer files the price request, the favorable price can be available after negotiation.


     8. How long can we expect the samples?


    Answer: Immediately in most of the cases.
