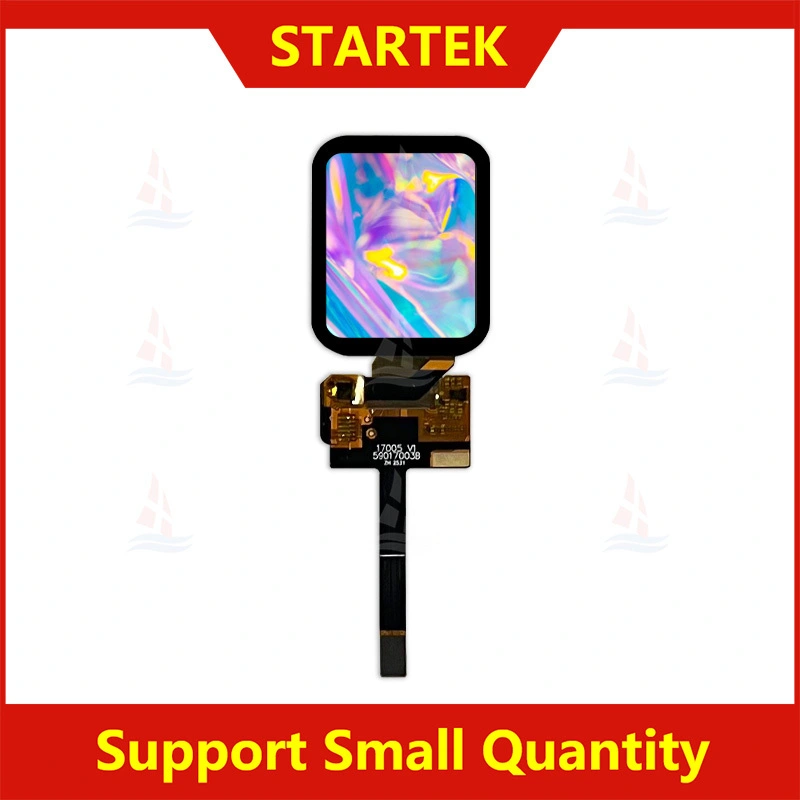

The KD017HVOSN005-C000 is a 1.78-inch AMOLED module by Shenzhen Startek. With 368×448 pixels, 16.7M colors, and 96%+ NTSC gamut, it features QSPI/3/4SPI interface, FT3168 touch IC. Operating at -20~60℃, it’s reliable for diverse applications.
Elevate Visual Experience with AMOLED Module
Boasting a 96%+ NTSC color gamut and 16.7 million colors, the KD017HVOSN005-C000 AMOLED module delivers vivid, true-to-life visuals. Its 368×448 pixel array with 78×78μm pixel pitch ensures sharp details, while the all-angle viewing capability lets users enjoy clear displays from any orientation. With a typical luminance of 450 cd/m², it offers bright, consistent output, complemented by precise chromaticity coordinates for red, green, and blue.
Designed for space-efficient integration, this 1.78-inch AMOLED module features a compact footprint (33.5×40.89×2.58mm) and ultra-lightweight (7g) construction. Whether for smartwatches, handheld terminals, or mini-displays, this module combines small size with robust mechanical properties for diverse applications.
Operate Reliably from -20℃ to 60℃
Engineered to withstand harsh environments, the module operates reliably between -20℃ and 60℃, with a storage range of -30℃ to 70℃. It passes rigorous reliability tests, including 96-hour high/low-temperature storage, 96-hour high-temperature high-humidity exposure (60℃, 90% RH), and 20 cycles of thermal shock (-20℃ to 70℃).
Advanced Touch & Interface Integration
Equipped with the FT3168 touch controller IC and CO5300 display controller, this module offers seamless touch functionality and versatile connectivity. The QSPI/3/4SPI LCM interface enables fast data transmission, while the I2C (TP_SDA/TP_SCL) touch interface supports responsive gestures. Key pins for touch reset (TP_RST), interrupt (TP_INT), and power (TP_VCC_3V3) simplify integration.
30,000-Hour OLED Lifespan & Rigorous Reliability Tests
Built for long-term reliability, the module features a 30,000-hour OLED lifespan, ensuring consistent performance over extended use. It adheres to strict quality standards (GB/T2828.1-2003/ISO 2859-1:1999) with AQL 0.65 for major defects and AQL 1.5 for minor defects. Electrical stability is guaranteed by its well-defined power characteristics (ELVDD, ELVSS, VDDIO, VCI) and DC/AC performance, including logic power supply (1.65-3.3V) and power IC supply (2.9-5V).
